후방카메라/애프터블로우
후방카메라
● FULL HD
| 구분 | SPECIFICATION | Remark |
|---|---|---|
| Image Sensor | PS3209K (1/2.9〃 FHD Bayer CMOS Sensor) |
Pixelplus |
| Effective Resolution | 1928(H) × 1088(V) | |
| Noise Reduction | OFF / ON | |
| White Balance | Auto / Manual | |
| Backlight | BLC | |
| Mirror | Horizontal / Vertical | |
| DNR | TBD | |
| Operation Temperature | -20℃ ~ 80℃ | |
| Storage Temperature | -20℃ ~ 80℃ | |
| Power | DC 5V (4.5 ~ 5.5V) | |
| Power consumption | 100mA @ 5V | |
| Video out format | TVI 30fps 1080P | |
| Pin Description | 1) +5V, 2) NC, 3) VIDEO, 4) GND | 2.5Ø |
● HD
| 구분 | SPECIFICATION | Remark |
|---|---|---|
| Image Sensor | PS3109K (1/4〃 HD Bayer CMOS Sensor) |
Pixelplus |
| Effective Resolution | 1280(H) × 720(V) | |
| Noise Reduction | OFF / ON | |
| White Balance | Auto / Manual | |
| Backlight | BLC | |
| Mirror | Horizontal / Vertical | |
| DNR | TBD | |
| Operation Temperature | -20℃ ~ 80℃ | |
| Storage Temperature | -20℃ ~ 80℃ | |
| Power | DC 5V (4.5 ~ 5.5V) | |
| Power consumption | 50mA @ 5V | |
| Video out format | TVI 30fps 720P | |
| Pin Description | 1) +5V, 2) NC, 3) VIDEO, 4) GND | 2.5Ø |

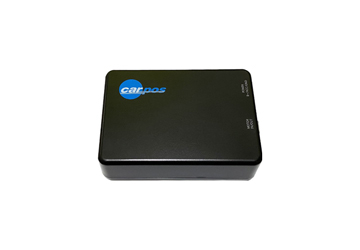

애프터블로우
